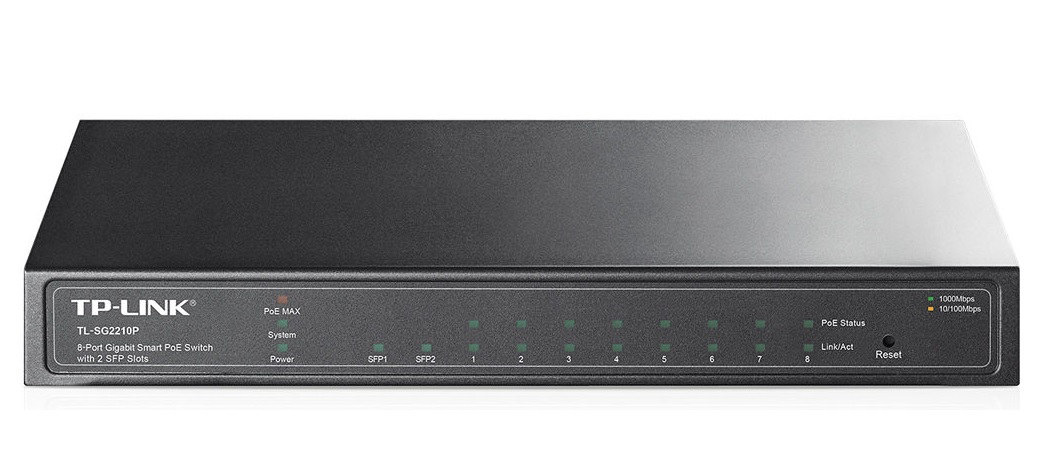

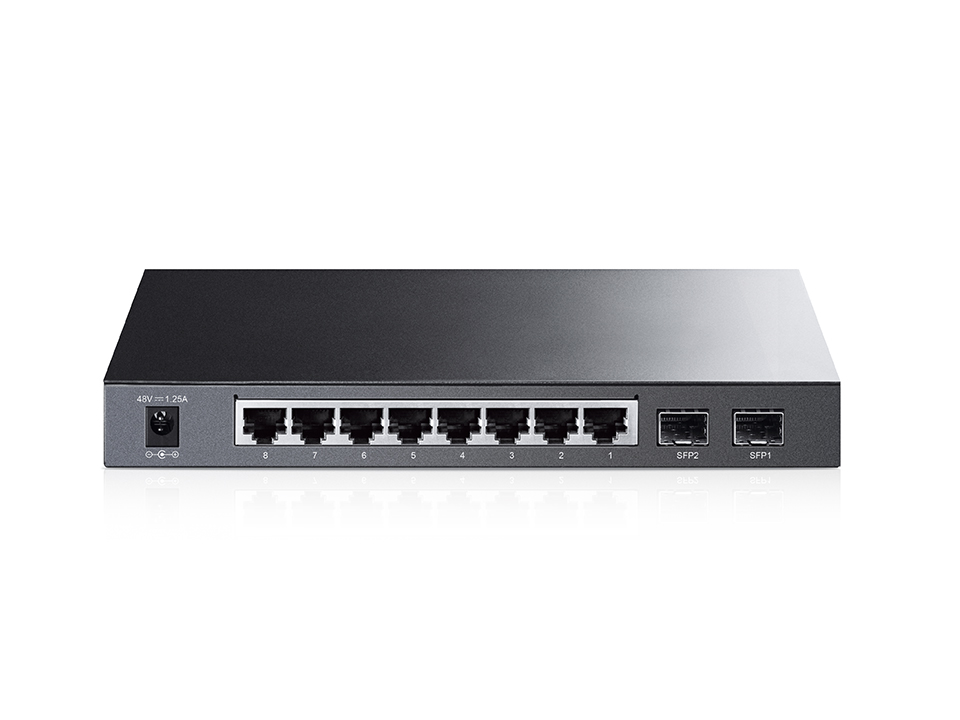

TP-LINK TL-SG2210P |
|
|
Model number: TL-SG2210P |
|
|
|
 |
|
|
Gyártói oldal
| |
| |
|
Átvételi lehetőség V. ker. Bajcsy-Zs. út - rendelésre 1 munkanap |
|
|
|
|
|
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF PoE Ports (RJ45) Standard: 802.3af compliant PoE Ports: 8 Ports Power Supply: 53W Dimensions (W X D X H) 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) Fan Quantity Fanless Power Consumption Maximum (PoE on): 63.4W (220V/50Hz) Maximum (PoE off): 10.4W (220V/50Hz) Power Supply 100~240VAC, 50/60Hz PERFORMANCE Bandwidth/Backplane 20Gbps MAC Address Table 8k Packet Buffer Memory 512KB Packet Forwarding Rate 14.9Mpps Jumbo Frame 9216 Bytes SOFTWARE FEATURES L2 Switching Features IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control LLDP(LLDP-MED) Quality of Service Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) Access Control List L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based Security SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown unicast Storm Control Management Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS OTHERS Certification CE, FCC, RoHS Package Contents TL-SG2210P Power Adapter Quick Installation Guide Resource CD Rubber Feet System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux. Environment Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing A bal alsó sarokban szereplő webshop egységár csak leadott és visszaigazolt rendelésekre érvényes. Visszaigazolt webshop rendelés nélkül a termék egységára 69.293 Ft. Üzletünkben jelenleg csak készpénzes fizetésre van mód. |
| ||||||||||||||||||||||||||||||||||||||||
|
|
|
||||
